Abbrasive Aerator Slurry
Submersible Pump “SASEW” Series

Overview of Abbrasive Aerator Slurry Submersible Pump "SASEW" Series

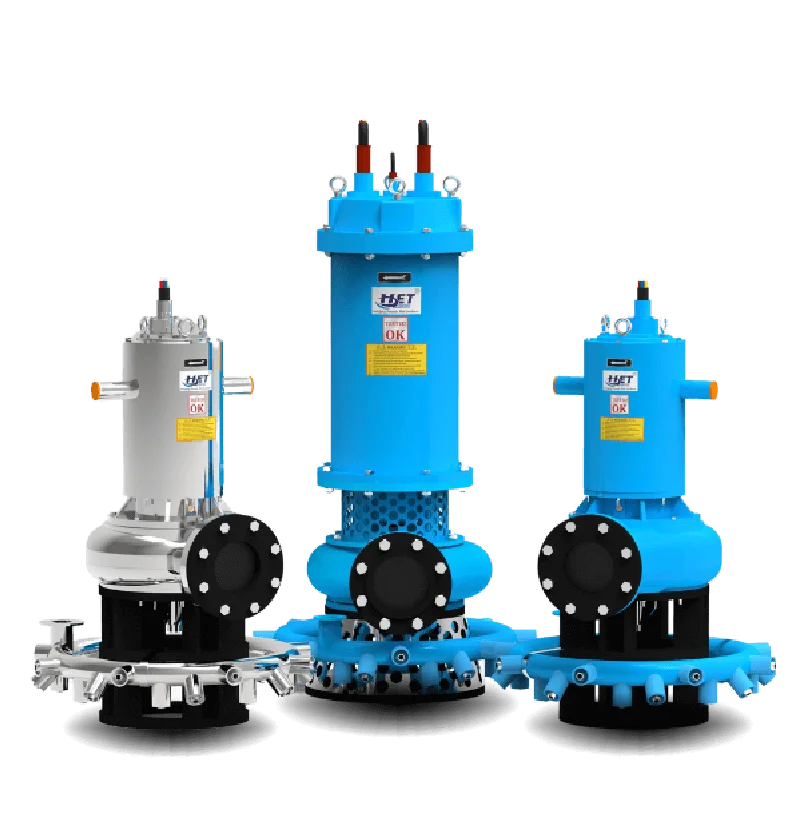

The “HET” “SASEW” Series is a Single Stage Submersible Slurry Pump equipped with an Agitator and Aerator System, designed to handle heavy slurry solids up to 40 mm and densities up to 2.0 kg/m³. This non-clog pump is built for abrasive and corrosive slurry applications, making it suitable for industrial waste removal and challenging sludge environments.
The pump’s non-pressurized mechanical seal assembly protects the motor and seal from abrasive damage, while the regular single-volute casing, inducer, temperature sensors, and cooling jacket enhance performance and adaptability. The “SASEW” Series delivers reliable, innovative, and durable performance in tough industrial conditions.
Key Performance Metrics of Abrasive Aerator Slurry Submersible Pump
Discharge range
Up to 1000 M³/Hr
Head range
Up to 65 Mtr.
Rating
10 to 200 HP
Rated speed
4, 6, 8 Pole
-
A jet-pressure aerator efficiently transforms solids into liquids
-
The agitator effectively blends solids with water
-
A strainer ensures uniform sizing of solids
-
Head - Up to 65 mtr.
-
Discharge - Up to 1000 m3/hr.
-
Soild Size - max. Up to 40 mm
-
Speed - 1450 / 960 / 750 rpm
-
Delivery Size - 100 MM / 150 MM / 200 MM / 250 MM / 300 MM / 350 MM
-
Delivery Type - Flange type
-
Power Rating - 10 to 200 HP
-
Supply - 3Ø, 50Hz/60hz, A.C.
NOTE : Also these pump are available as per customer require material of construction like S.S. 304 /S.S.316/NI HARD/ HI CHROME or any other , We also provided if any specific part with special material of construciton as per application
-
Motor Part - Cast Iron / SG Iron
-
Impeller - Stainless Steel / Ni-Hard
-
Agitator / Inducer - Stainless Steel
-
cooling jacket - Stainless Steel
-
Mech. Seal - Non Pressurize Tc /Tc
-
Rubber Part - Nitrile Rubber / Viton
-
Fastner - Stainless Steel
-
Cable - PVC Double sheathed with 10 mtr. Length
-
Motor Winding - F/H Class Copper Wound
-
Employed in su finalization of products from raw materials.
-
Applied in marble and stone industries for processing tasks.
-
Utilized in constru ve excess water during the monsoon season.
-
Employed in mining operations to manage slurry liquids.
-
Construction Projects
-
Domestic Sludge Handling.
-
Manhole / Septic Tank
-
Industries / Water Treatment Plants / ETP / STP.
-
Municipal Corporations
